產品名稱:

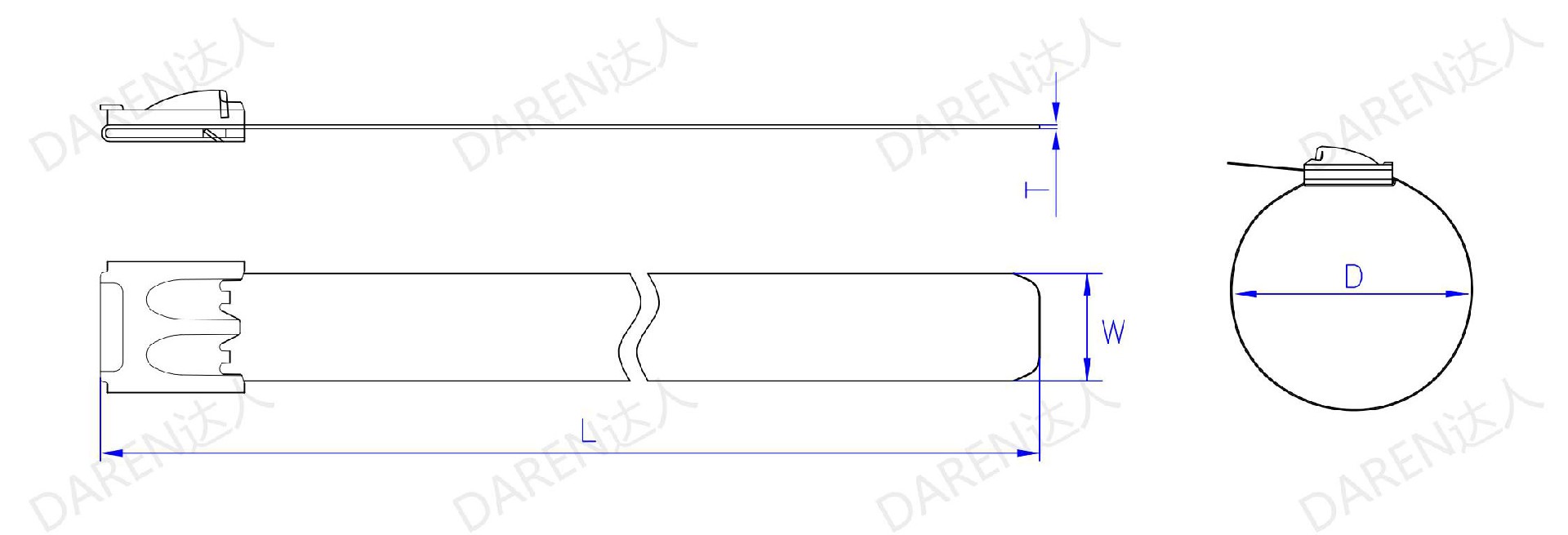

產品圖紙
規格尺寸
| Item No 規格型號 | width/寬度 | length/長度 | thickness/厚度 | Maximum bundle diameter 最大捆綁直徑 | Minimum bundle diameter 最小捆綁直徑 | Minimum pull 最小拉力 | Recommended Installation tools 配套工具 | ||||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | N | IBS | ||||
| BZS-12*200 | 12 | 0.31 | 200 | 7.87 | 0.25 0.3 0.4 | 0.01 | 47 | 1.85 | 12.7 | 0.5 | 3000 | 675 | CT02 | ||
| BZS-12*300 | 300 | 11.81 | 79 | 3.11 | |||||||||||
| BZS-12*400 | 400 | 15.75 | 111 | 4.37 | |||||||||||
| BZS-12*500 | 500 | 19.69 | 143 | 5.63 | |||||||||||
| BZS-12*600 | 600 | 23.62 | 175 | 6.89 | |||||||||||
| BZS-12*700 | 700 | 27.56 | 207 | 8.15 | |||||||||||
| BZS-12*800 | 800 | 31.50 | 239 | 9.41 | |||||||||||
| BZS-12*900 | 900 | 35.43 | 270 | 10.63 | |||||||||||
| BZS-12*1000 | 1000 | 39.37 | 302 | 11.89 | |||||||||||
| BZS-12*1100 | 1100 | 43.3 | 334 | 13.15 | |||||||||||
| BZS-12*1200 | 1200 | 47.24 | 366 | 14.41 | |||||||||||
| BZS-16*300 | 16 | 0.47 | 300 | 13.78 | 0.3 0.4 | 0.01 | 79 | 3.11 | 25.4 | 1 | 4000 | 900 | LQB C002 | ||
| BZS-16*400 | 400 | 15.7 | 111 | 4.37 | |||||||||||
| BZS-16*500 | 500 | 19.7 | 143 | 5.63 | |||||||||||
| BZS-16*600 | 600 | 23.6 | 175 | 6.89 | |||||||||||
| BZS-16*700 | 700 | 27.5 | 207 | 8.15 | |||||||||||
| BZS-16*800 | 800 | 31.5 | 239 | 9.41 | |||||||||||
| BZS-16*900 | 900 | 35.4 | 270 | 10.63 | |||||||||||
| BZS-16*1000 | 1000 | 39.4 | 302 | 11.89 | |||||||||||
| BZS-19*300 | 19 | 0.75 | 300 | 13.78 | 0.3 0.4 | 0.01 | 79 | 3.11 | 25.4 | 1 | 4000 | 900 | LQB C002 | ||
| BZS-19*400 | 400 | 15.7 | 111 | 4.37 | |||||||||||
| BZS-19*500 | 500 | 19.7 | 143 | 5.63 | |||||||||||
| BZS-19*600 | 600 | 23.6 | 175 | 6.89 | |||||||||||
| BZS-19*700 | 700 | 27.5 | 207 | 8.15 | |||||||||||
| BZS-19*800 | 800 | 31.5 | 239 | 9.41 | |||||||||||
| BZS-19*900 | 900 | 35.4 | 270 | 10.63 | |||||||||||
| BZS-19*1000 | 1000 | 39.4 | 302 | 11.89 | |||||||||||
